About iFSC - Field Setup Controller

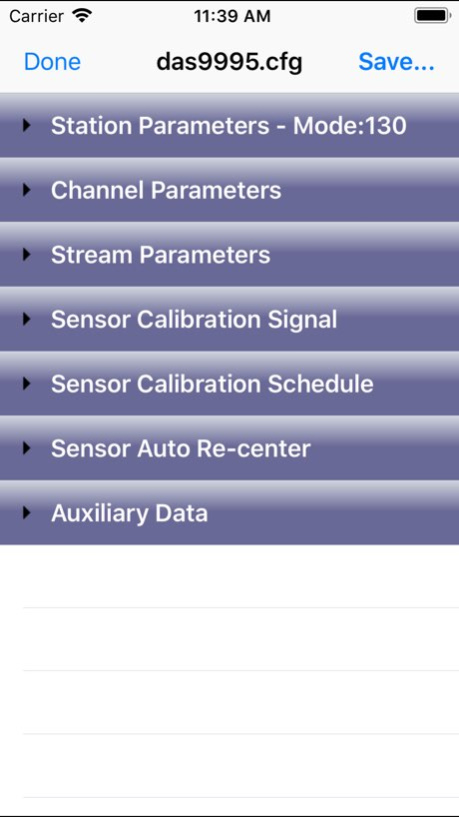

iFSC (Field Setup Controller) is a Command/Control app for the REF TEK 130 DAS Seismic Recorder via the Serial Port.. iFSC is used to edit and program the acquisition parameters of the DAS. It also provides...

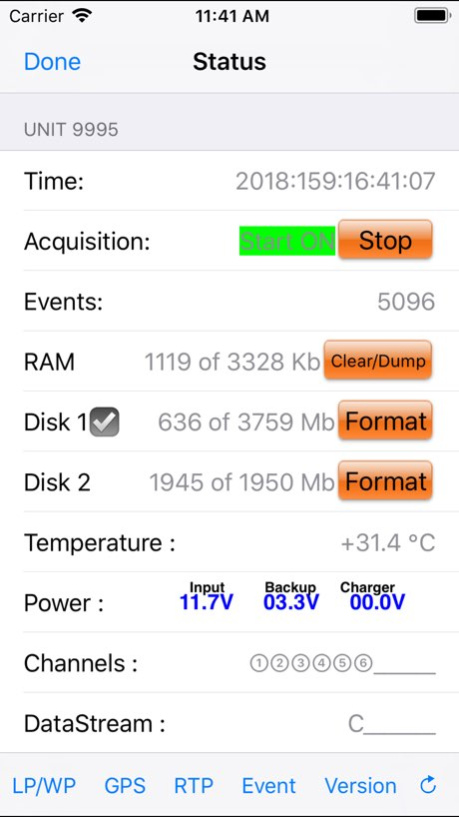

iFSC (Field Setup Controller) is a Command/Control app for the REF TEK 130 DAS Seismic Recorder via the Serial Port.. iFSC is used to edit and program the acquisition parameters of the DAS. It also provides State-of-Health monitoring with an extensive set of Status commands. State-of-Health monitoring includes acquisition status, RAM and disk usage, GPS status, main and backup battery voltages, time, and temperature. Additional commands allow setting up network connections and checking network status. Data monitoring without stopping acquisition is also available. The Command/Control functionality of this app requires the iFSC cable or WiFi Serial Adapter which are available from the manufacturer of the REF TEK 130 DAS Seismic Recorder.
Previous Versions
Here you can find the changelog of iFSC - Field Setup Controller since it was posted on our website on 2016-10-01 02:44:24.
The latest version is 2.23 and it was updated on 2026-10-12 19:13:12. See below the changes in each version.
iFSC - Field Setup Controller version 2.23
Updated At: 2026-10-08
Changes: Version History Add Sensor Model REF TEK Colt in Channel Parameters Configuration screen. 2.23 12/10/2018 Fixes to crashes that surfaced when run in iOS 11.3. 2.22 06/11/2018 Fix Aux Control-> Off-set-> Calc-> Store operation lock up on older iOS devices. 2.21 09/30/2015 * Removed 16 bit option for Data Format in Datastream configuration.
* When editing configuration and mode is 130S, include 0.1, 1, and 5 SPS as Sample Rate options in Datastream.
* Minor display bug fixes with iOS 7 and above. 2.20 04/21/2015 * Match nomenclature, terminologies, specs, and capability changes on the latest DAS130 firmware and hardware.
- Use RTP1/RTP2 in place of ENet/Serial labels.
- Limit Parameter configuration to 4 Datastreams.
- Removed 25 SPS from Datastream Sample Rate options.
- Removed options for Sample Rates 0.1, 1, and 5 SPS if in 130REN mode.
- 130REN mode supports 1 to 6 channels and added Compressed (CF) data format in the Datastream.
- Add RT608 D board as Damped/Undamped Test capable unit.
- Revised limits for Calibration Duration and Step Signal parameters.
* Bug fixes 2.10 06/18/2014 * Support communication via WiFi-Serial Adapter (hardware available from Trimble) on DAS 130 Serial Port.
* Added support for DAS 130Q/QH Transmitter & Calibration Parameters Configuration. 2.0 02/26/2014 Bug fix to allow support of standard Sensor Tests for DAS130 with the new 0527 Rev D Sensor Control board. 1.41 06/28/2013 *Support Sensor Damped/Undamped test. [Note: Requires compatible DAS130 hardware and firmware.]
*Support DAS130 Rapid Event Notification (REN) mode. [Note: Requires compatible DAS130 hardware and/or firmware.]
- screens and display customized for REN configuration and parameters
- Dual RTP Network DAS130 configuration
- Added Difference (DIF) Trigger Type as Datastream parameter

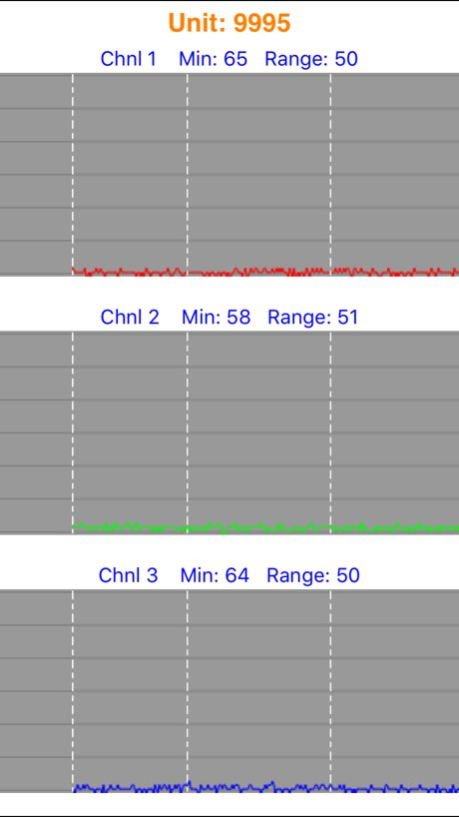

- Real Time Monitor option to display sensor reading value in numeric format
* Bug fixes. Memory leak fixes. 1.40 03/28/2013 * Support Sensor Lock/UnLock operations when used with compatible DAS 130 firmware and hardware.
* Mode 130S for Configuration file edit screens to support reassignment of Datastream Sample Rate 50 samples/sec to Group 2. Requires compatible DAS 130 firmware.
* Fixed memory leak in Data Stream Level Trigger Parameter screen.
* Real time data monitor display fixes and improvements. 1.30 05/29/2012 -Fix Mode menu selection screen crash on iOS 5 devices.
-Support new Sensor Auto Re-center parameters.
-Support real-time Sensor data display.
Note: Requires DAS 130 firmware version 340 for the new features added. 1.20 01/18/2012 -Improved handling of serial communication timeout conditions.
-Color coded background for Acquisition status display.
-Allow Configuration Utilities to talk to any currently connected DAS 130 without having to restart iFSC.
- Added Navigation toolbar for textfields.
- Bug fix in handling Sensor Calibration Signal validation error conditions.
- Various cosmetic improvements and typo corrections. 1.10 11/11/2011 1.0 08/31/2011
iFSC - Field Setup Controller version 2.23
Updated At: 2018-12-10
Changes: Add Sensor Model REF TEK Colt in Channel Parameters Configuration screen.
iFSC - Field Setup Controller version 2.23
Updated At: 2018-12-10
Changes: Dec 10, 2018
Version 2.23
Add Sensor Model REF TEK Colt in Channel Parameters Configuration screen.
iFSC - Field Setup Controller version 2.21
Updated At: 2011-08-31
